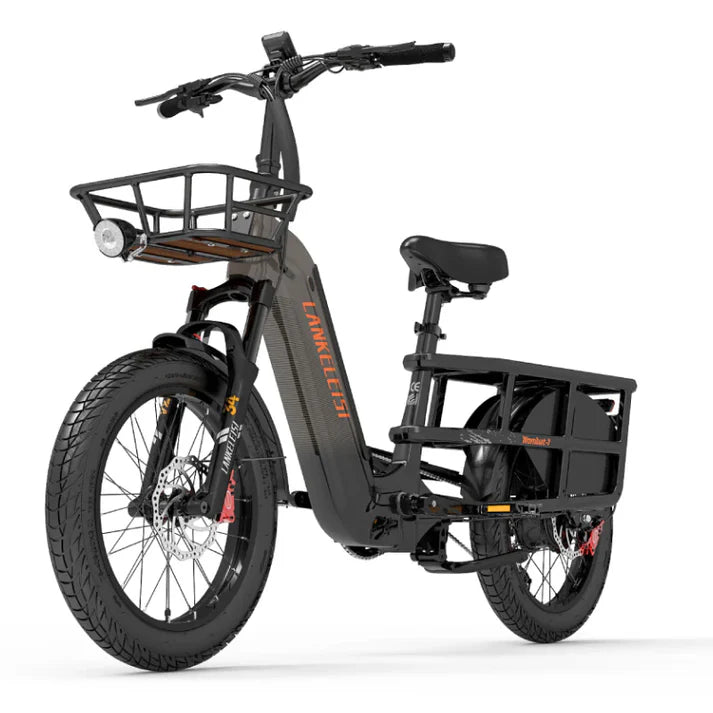

WOMBAT-1

Price
£229.00
£229.00
Tax included.
Color
Up to 5 Years Warranty
WOMBAT-1
  • Overview
  • Specifications

Powerful Riding Specs

Built For Utility. Ready For Distance.

Engineered for daily cargo rides, long-range comfort, and confident power wherever the road takes you.
0W
Brushless Motor
0 KM
Maximum Range
0 KM/H
Top Speed Tested
0V 20Ah
Samsung Battery
0 KG
Payload Capacity
160–190 CM
Recommended Height

PREMIUM COMPONENTS

Other Highlights.

Designed for comfort, storage, safety, and daily utility — with strong components made for city rides and rough terrain.
Hydraulic Brake
COMPONENT IMAGE PREVIEW

RESPONSIVE STOPPING POWER

Hydraulic Brake

Hydraulic brakes deliver powerful stopping performance and precise control, helping you ride safely across changing roads and conditions.

✦ TECHNICAL PARAMETERS ✦

Wombat-1 Specs Dashboard

Power, battery, cargo support, and control details — organized in one clean cockpit.
ACTIVE PROFILE 0W Brushless Motor Power
Motor 0W
Battery 0Wh
Max Range 0 KM
Payload 0KG

Powertrain

Strong motor support for daily cargo rides, hills, and mixed urban routes.

Motor1000W
Torque75Nm

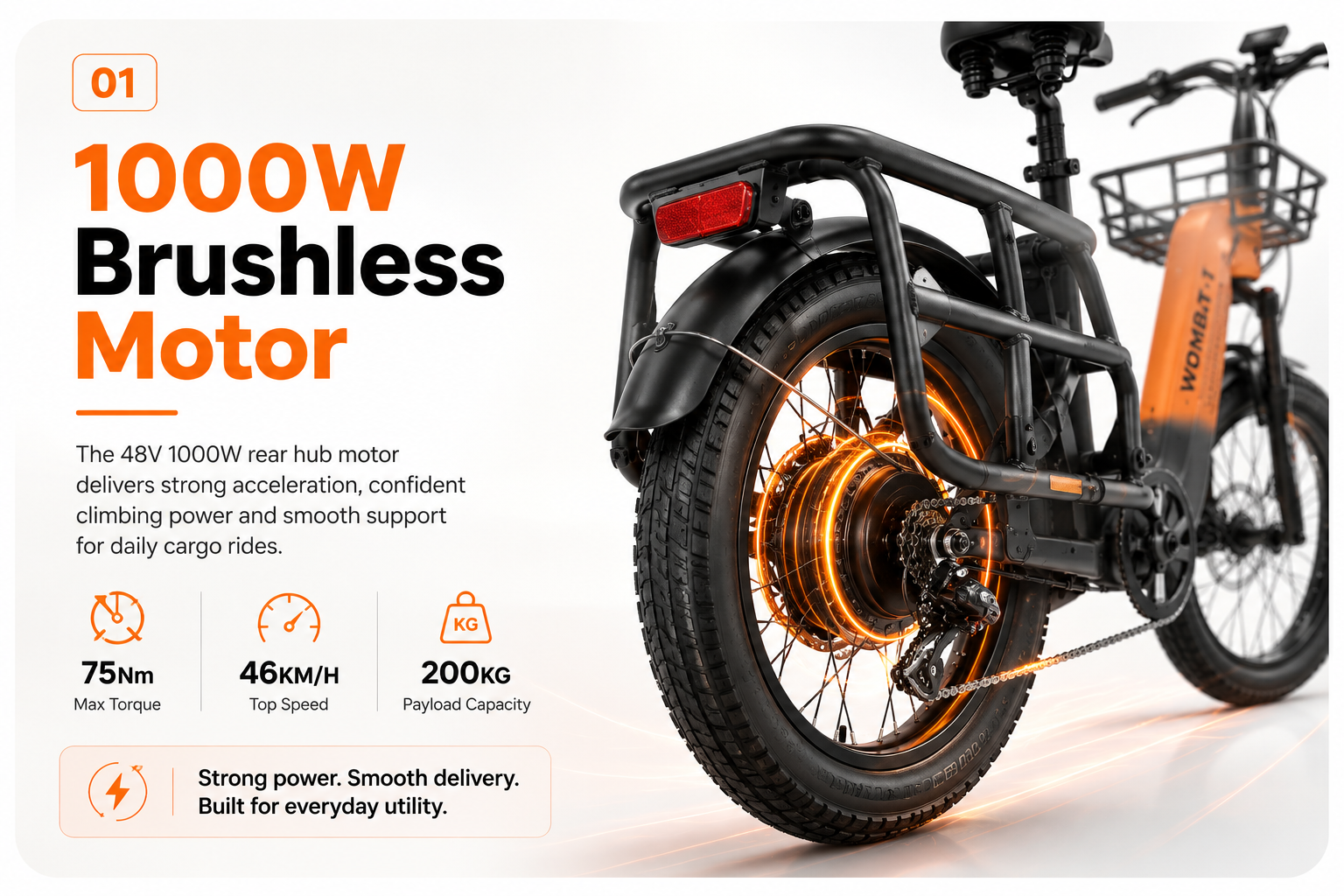

Motor48V 1000W Brushless Motor
Max Torque75Nm
Top SpeedUp to 46 KM/H
Controller48V 20A Vector Controller
Power AssistTorque Sensor

Energy System

Samsung lithium battery capacity built for longer trips and practical daily use.

Battery48V 20Ah
Capacity960Wh

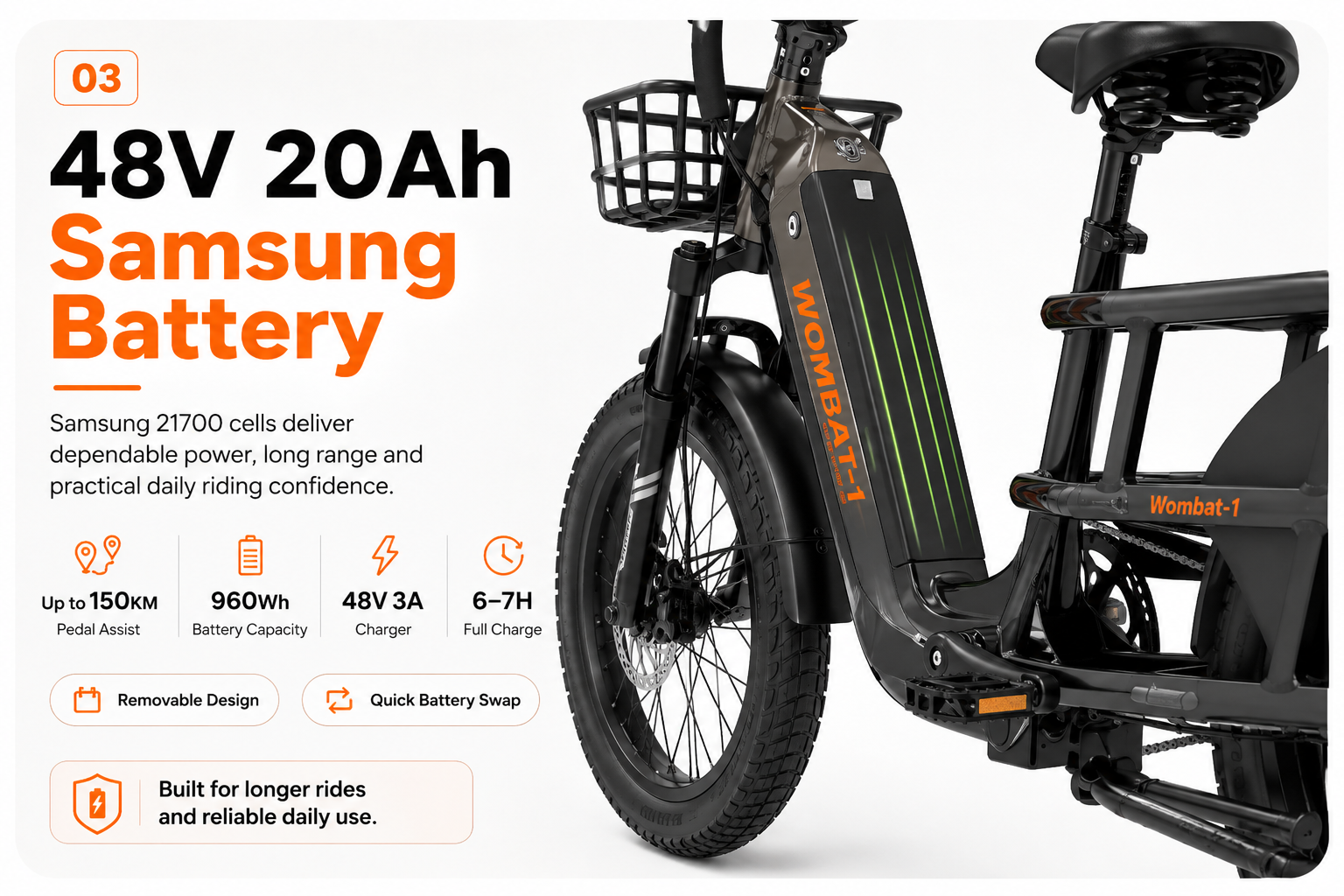

Battery48V 20Ah Samsung Lithium, 21700 cells
Charger48V 3A Charger
Pure Electric Range60–70 KM
Pedal Assist Range120–150 KM

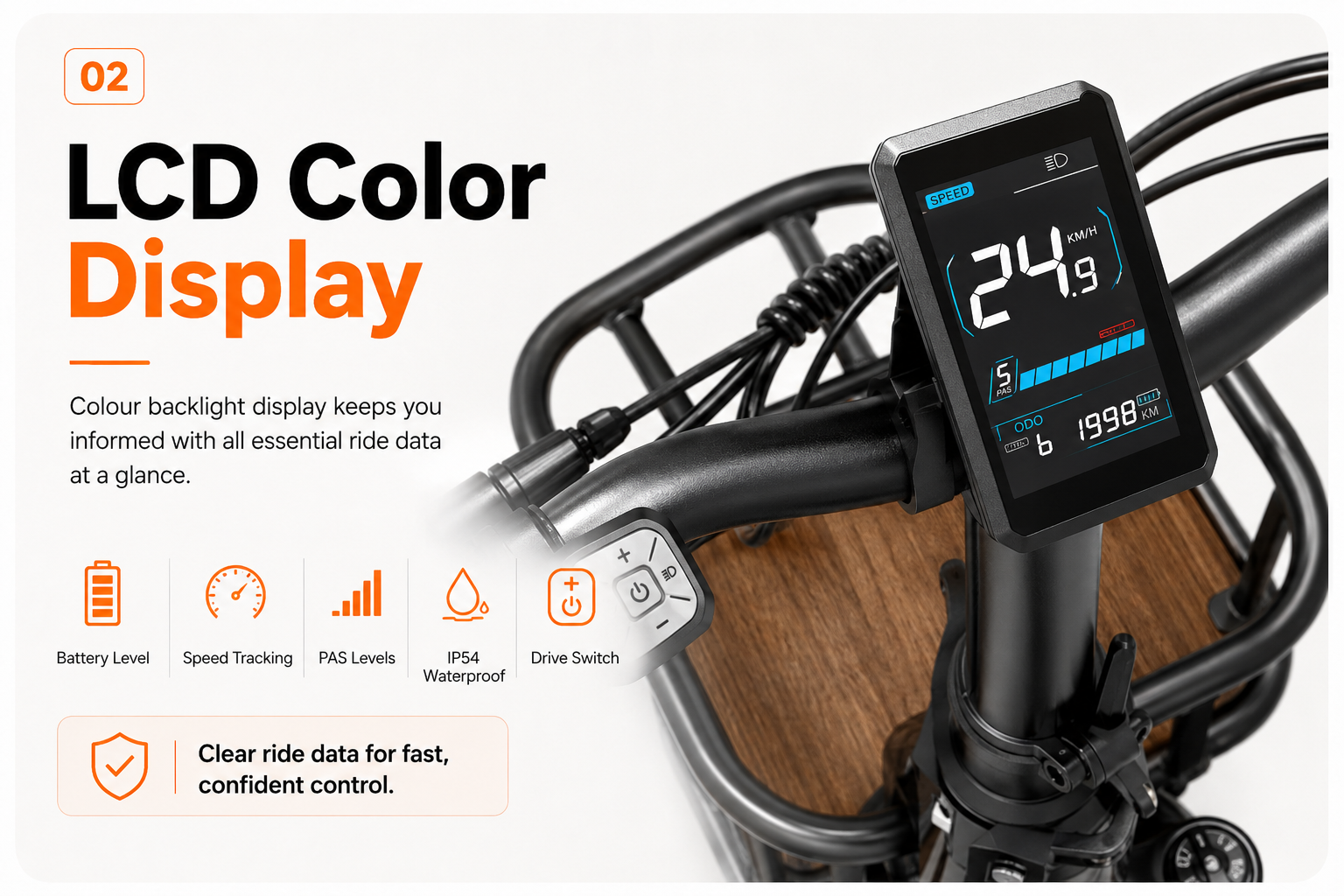

DisplayColor LCD Display
Waterproof RatingIP54 Daily Use

Ride Control

Hydraulic braking, Shimano shifting, and thumb throttle for easier control.

TransmissionShimano 7
BrakesHydraulic
Variable SpeedShimano 7 Speed
Shifting LeverShimano M315-7
Rear DerailleurShimano M310
ChainKMC 7s
Brake180MM DYISLAND Hydraulic Disc Brakes
ThrottleThumb Throttle

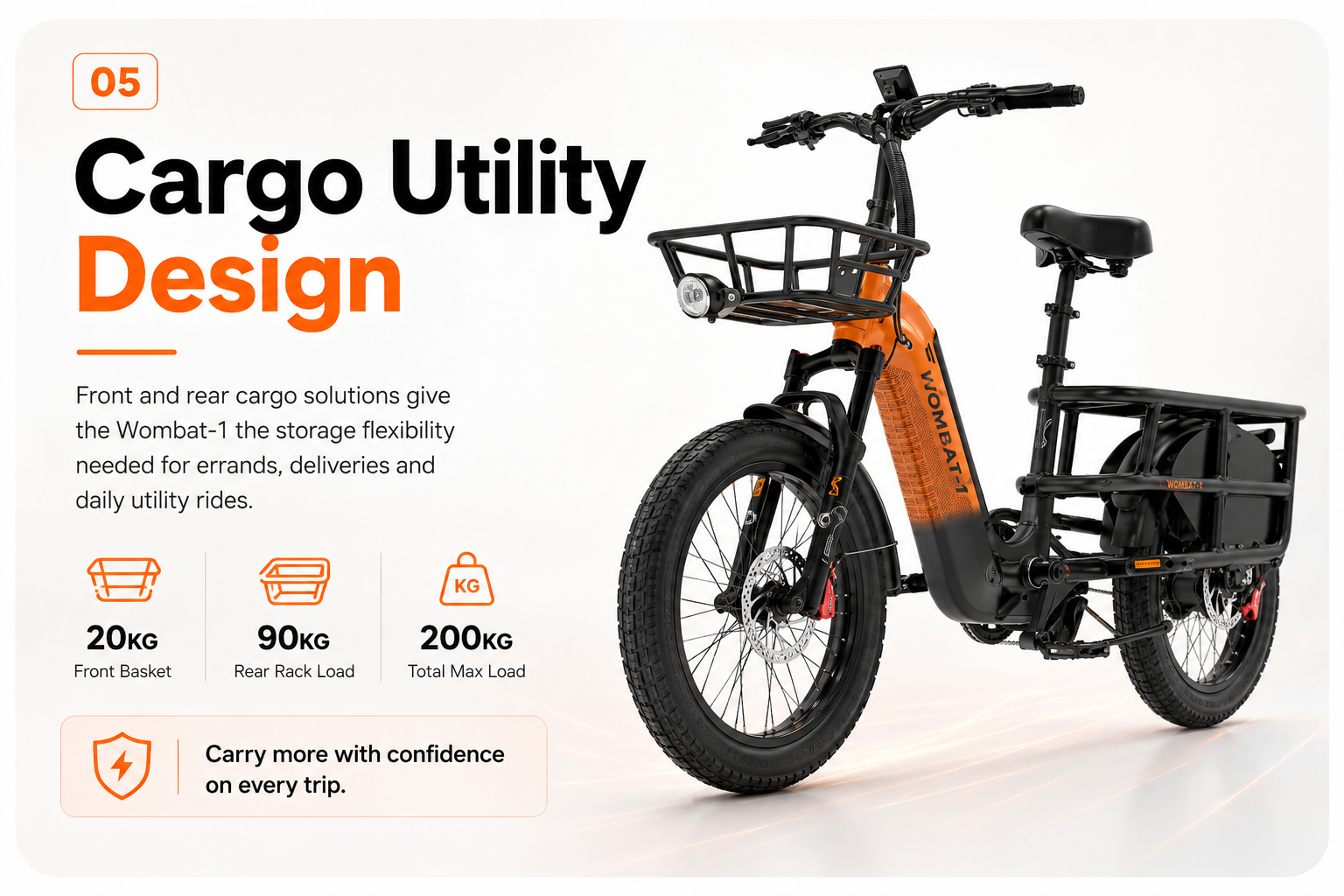

Build & Cargo

Compact cargo-ready construction with strong load support and fat-tire stability.

Max Load200KG
Rear Rack90KG
Frame6061 Aluminum Alloy Frame

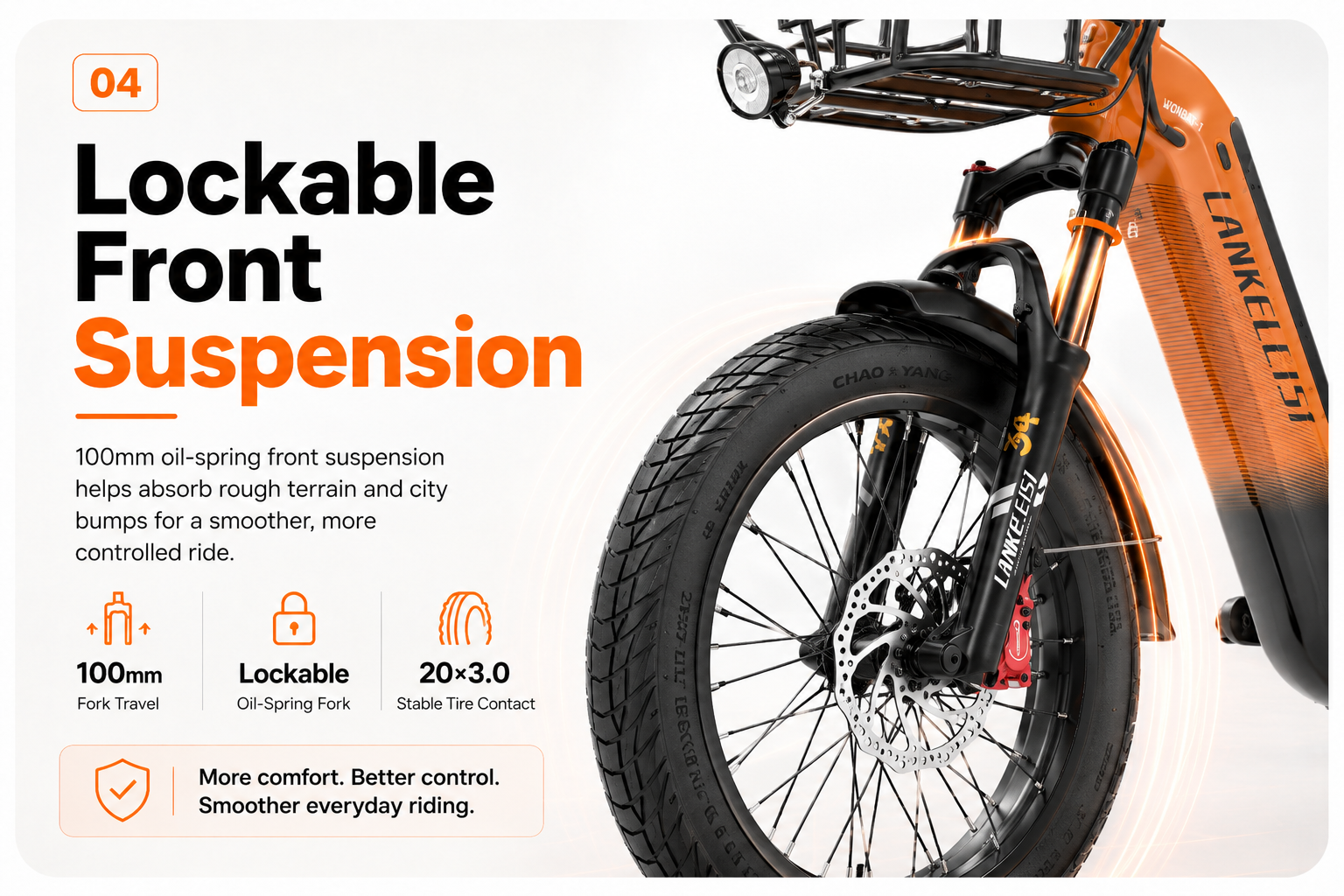

ForkLockable Oil Spring Suspension, 100mm Travel
Tire20×3.0 Fat Tire
Bike Weight37KG / 81.57lbs
Max Bike Load200KG / 440lbs
Rear Rack Load90KG / 190lbs
Rider Height160–190CM

Quick Help

FAQ & Ride Guide

Fast answers and the full Wombat-1 guide in one compact place.

If the product is in stock, delivery is usually arranged as soon as possible. Estimated delivery time is typically 5–7 business days depending on destination and carrier service.

The Wombat-1 is suitable for riders around 160–190cm, making it practical for a wide range of daily riders.

The Wombat-1 can reach 60–70km in pure electric mode and up to 120–150km with pedal assist, depending on rider weight, terrain, speed, weather, and riding style.

Yes. The Wombat-1 is built with practical cargo support, including front basket utility, rear rack support, 20×3.0 fat tires, and a maximum bike load of up to 200kg.

It uses a 48V 20Ah Samsung lithium battery with 21700 cells, designed for longer riding range and reliable daily power.

User Guide PDF

Wombat-1 User Manual

View or download the Wombat-1 English manual to learn how to assemble, operate, charge, and maintain your electric bike safely.

Open Guide Includes setup, charging, safety, display, and maintenance guidance.
